Online Shopping Site for Buying MPPT Solar Inverters,mppt inverters,
Mppt Solar Charge Controllers Lithium batteries & Solar panels
Made in India Solar Products.Solar Inverter MPPT Controller Lithium Battery Panel solar inverter 4kva
SPS Mppt Solar Hybrid Inverters.These are Mppt based solar hybrid inverters and are equipped with
inBuilt MPPT Charge Controller.These are Pure sinewave inverters and are safe to all
kind of loads.These inverters are based on switching MOSFETs.They have the Priority Solar Charging mode
or otherwise called hybrid mode.These inverters are compatible
with both Lithium and lead acid battery types. These inverters available in both aluminium and copper
based transformers.Care should be taken while connecting the battery and Solar panels to this inverter.Always connect the
battery first,then connect the solar panel.
The 3 Latest mppt charge controllers available are labeled as Red,Green and Yellow.The features of this
charge controllers as below.Turn your normal/existing inverter into a solar inverter.Have a very long
operational life and are incredibly reliable.When connected to a battery bank, its smart sensing feature will
automatically identify the battery voltage 12/24/36/48/60/72V.You can turn off smart sensing manually using setting probe.
Idle mode preserves battery life by preventing overcharging and battery
water drain during extended periods of inactivity.
Radio Frequency enabled remote with BLDC fan in Kerala. Four times efficient than ordinary fan.Available
in black,brown,white and ivory colours .
Advantages of BLDC fans 1. Traditional Ceiling fans run on AC motors. Yet, fans with BLDC technology use
brushless DC engines that cut
power consumption by 65%. 2. BLDC winding has thick copper cables to ensure a longer lifespan with low
winding issues. These fans do not get overheated. 3.
The carbon brushes are absent from the rotor and the stator of the BLDC fan. Hence, there is no hidden
maintenance cost involved in the replacement of brushes.
4. BLDC fans maintain high torque to secure high-quality performance. 5. An induction motor has carbon
bruises that create friction, which creates noise.
A BLDC fan has zero friction, hence creating minimal noise. 6. BLDC motors comprise electronic control
systems. That promotes fewer possibilities of collapse
because of wear and tear but an induction motor fan has a mechanical commutation unit.
Panka BLDC RF Fan
Panka BLDC Wallmount Fan
Panka BLDC Table Fan
How to setup solar off-grid hybrid system
Step 1: Assess Your Energy Needs
Calculate your daily energy consumption to determine system size requirements.
Step 2: Select the Location for Solar Panels
Choose a location with good sun exposure, free from shading obstacles.
Step 3:Determine the Size of the Solar Array:
Based on your energy needs and location, determine the number and size of solar panels you need.
Solar panels are usually rated in watts (W) or kilowatts (kW).
Step 4:Solar Panel Installation:
Mount the solar panels securely on a frame or rack.Ensure they are tilted at the optimal angle to
capture maximum sunlight Connect the solar panels in series or parallel to achieve the desired voltage
and amperage.
Step 5:Install Charge Controller:
Connect a charge controller between the solar panels and the battery bank to regulate the
charging process and prevent overcharging.
SPS Mppt charge controller autoselect YELLOW-40A-110C-4L
It has a 4-LINE display and will operate on 12-48V battery system with an ampere rating of
40A.It will support maximum solar panel voc of 110V.In 12V battery mode, it will support minimum
solar panel voc of 15V and maximum solar panel voc of 55V.Maximum solar panel supported in 12v battery mode
is 800W.In 24V battery mode, it will support minimum solar panel voc of 30V and maximum solar panel
voc of 110V.Maximum solar panel supported in 24v battery mode is 1400W.In 36V battery mode, it will
support minimum solar panel voc of 60V and maximum solar panel voc of 110V.Maximum solar panel supported in 36v
battery mode is 1800W.In 48V battery mode, it will support minimum solar panel voc of 60V and
maximum solar panel voc of 110V.Maximum solar panel supported in 48v battery mode is 2200W.
Sps mppt charge controller yellow-40
SPS Mppt charge controller autoselect GREEN-80A-190C-4L
It has a 4-LINE display and will operate on 12-72V battery system with an ampere rating of
80A.It will support maximum solar panel voc of 220V.In 12V battery mode, it will support minimum
solar panel voc of 15V and maximum solar panel voc of 55V.Maximum solar panel supported in 12v battery mode
is 1500W.In 24V battery mode, it will support minimum solar panel voc of 30V and maximum solar
panel voc of 110V.Maximum solar panel supported in 24v battery mode is 2500W.In 36V battery mode, it will
support minimum solar panel voc of 60V and maximum solar panel voc of 150V.Maximum solar panel supported in 36v
battery mode is 3500W.In 48V battery mode, it will support minimum solar panel voc of 60V and
maximum solar panel voc of 220V.Maximum solar panel supported in 48v battery mode is 4500W.In 72V battery
mode, it will support minimum solar panel voc of 90V and maximum solar panel voc of 220V.Maximum solar panel
supported in 72v battery mode is 5500W.
Sps mppt charge controller GREEN-80A

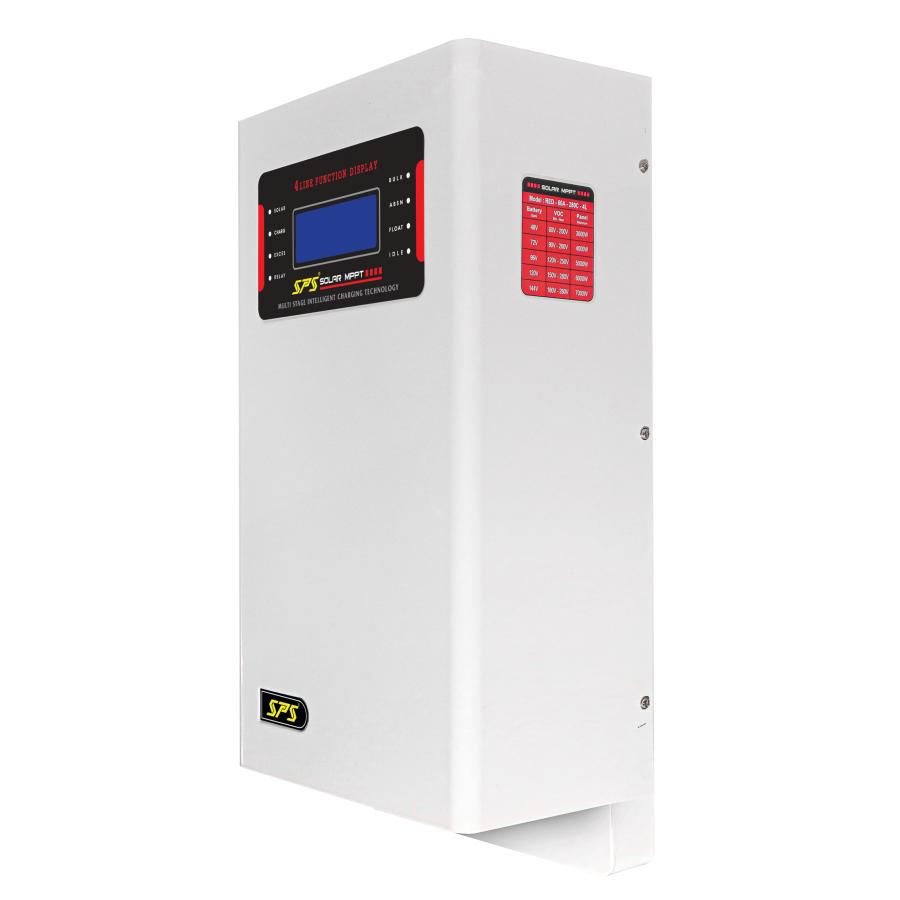

SPS Mppt charge controller autoselect RED-80A-280C-4L
It has a 4-LINE display and will operate on 48-144V battery system with an ampere rating of 80A.
It will support maximum solar panel voc of 280V.In 48V battery mode, it will support minimum
solar panel voc of 60V and maximum solar panel voc of 200V.
Maximum solar panel supported in 48v battery mode is 4500W.In 72V battery mode, it will support
minimum solar panel voc of 90V andmaximum solar panel voc of 200V.Maximum solar panel supported
in 72v battery mode is 6500W.In96V battery mode, it will support minimum solar panel voc of 120V and
maximum solar panel voc of 250V.Maximum solar panel supported in 96v battery mode is 7500W.In 120V
battery mode,it will support minimum solar panel voc of 150V and maximum solar panel voc of 280V.Maximum
solar panel supported in 120v battery mode is 9000W.In 144V battery mode, it will support minimum solar
panel voc of 180V and maximum solar panel voc of 280V.Maximum solar panel supported in 144v battery mode
is 11000W.
Sps mppt charge controller RED-80A
Step 6:Battery Bank Installation:
Choose the appropriate type of batteries (e.g., deep-cycle lead-acid, lithium-ion) and install
them in a well-ventilated and secure location.Connect the batteries in a series or parallel
configuration to achieve the desired voltage and capacity.
Step 7:Inverter Installation: mppt inverters
Install an inverter to convert the DC power from the battery bank into AC power that can be used
in your home.Ensure the inverter is properly sized to handle your peak power demand.

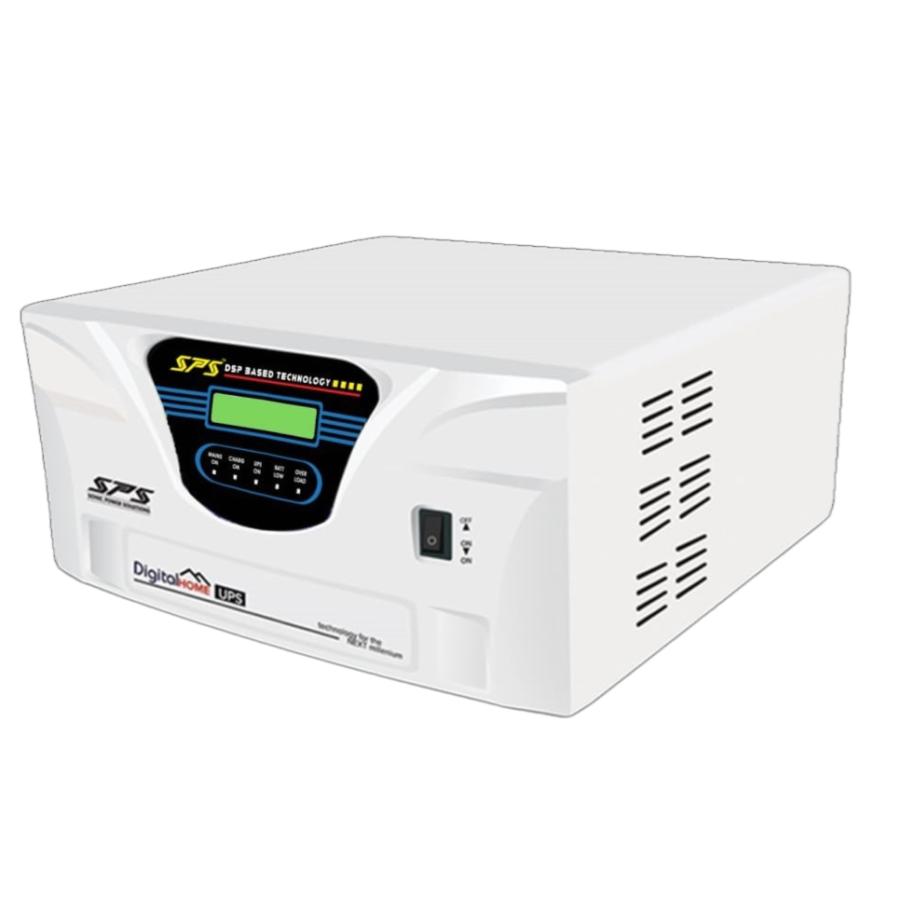

Working of SPS Mppt Solar Hybrid Inverter 1.5KVA-12V-55VOC HS1500A. mppt inverters
Since this inverter is a 12V battery system model, it will switch to grid and solar as below.When
the battery voltage reaches 14V it would disconnect your inverter from mains and entire load
runs on battery & Solar. In evening, when solar power is low or battery voltage is below 11.5V, it will
switch to mains.This solar mppt hybrid inverter is capable to load 1.1KW of surge load and able to run
500W load continuously.Minimum VOC of the panel supported is 20V and Maximim VOC supported is
55V.Maximum solar panels supported is 800W.The ampere rating of mppt is 40A.
Solar Hybrid Inverter 1.5KVA-12V-55VOC
Working of SPS Mppt Solar Hybrid Inverter 2KVA-24V-55VOC HS2000A. mppt inverters
Since this inverter is a 24V battery system model, it will switch to grid and solar as below.When
the battery voltage reaches 28V it would disconnect your inverter from mains and entire load
runs on battery & Solar. In evening, when solar power is low or battery voltage is below 23V, it will
switch to mains.This solar mppt hybrid inverter is capable to load 1.5KW of surge load and able to run
1000W load continuously.Minimum VOC of the panel supported is 20V and Maximim VOC supported is
55V.Maximum solar panels supported is 1600W.The ampere rating of mppt is 40A.
Solar Hybrid Inverter 2KVA-24V-55VOC

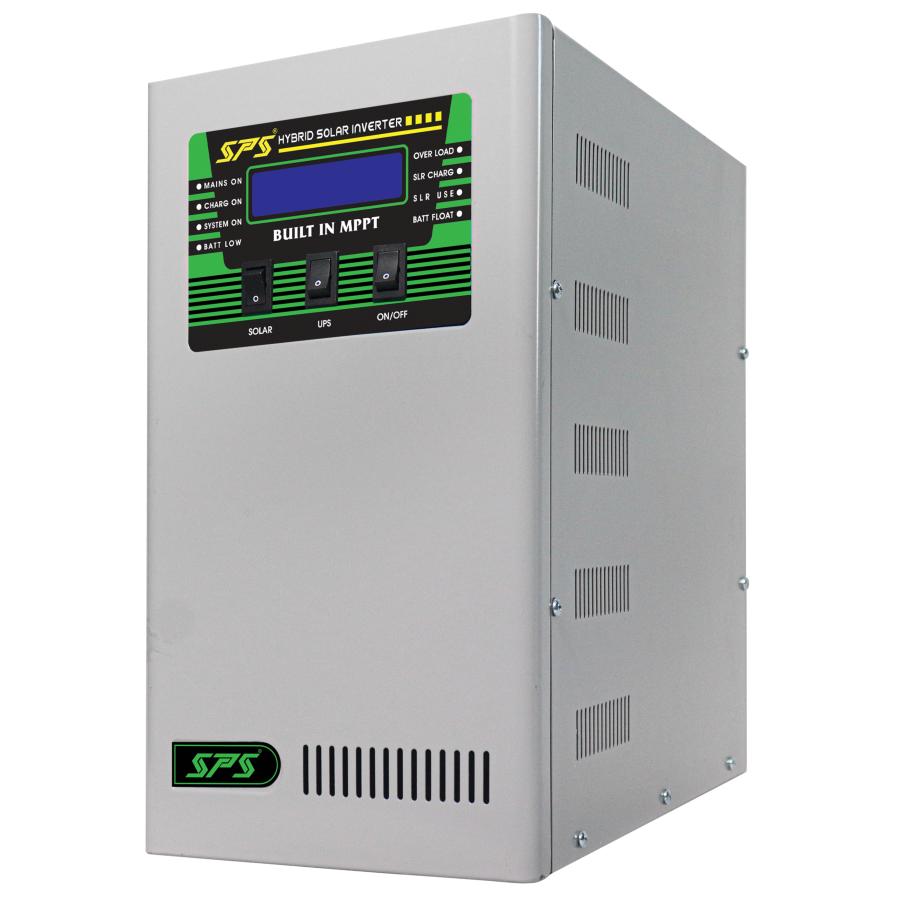

Working of SPS Mppt Solar Hybrid Inverter 3KVA-24V-110VOC HS3000A. mppt inverters
Since this inverter is a 24V battery system model, it will switch to grid and solar as below.When
the battery voltage reaches 28V it would disconnect your inverter from mains and entire load
runs on battery & Solar. In evening, when solar power is low or battery voltage is below 23V, it will
switch to mains.This solar mppt hybrid inverter is capable to load 2.2KW of surge load and able to run
1000W load continuously.Minimum VOC of the panel supported is 40V and Maximim VOC supported is
110V.Maximum solar panels supported is 1600W.The ampere rating of mppt is 40A.
Solar Hybrid Inverter 3KVA-24V-100VOC
Working of SPS Mppt Solar Hybrid Inverter 4KVA-36V-110VOC HS4000A.mppt inverters
Since this inverter is a 36V battery system model, it will switch to grid and solar as
below.When the battery voltage reaches 42V it would disconnect your inverter from mains and
entire load runs on battery & Solar. In evening, when solar power is low or battery voltage is below 34.5V, it will
switch to mains.This solar mppt hybrid inverter is capable to load 3KW of surge load and able to run
1500W load continuously.Minimum VOC of the panel supported is 40V and Maximim VOC supported is
110V.Maximum solar panels supported is 2400W.The ampere rating of mppt is 40A.
Working of SPS Mppt Solar Hybrid Inverter 4KVA-48V-110VOC HS4000A.mppt inverters
Since this inverter is a 48V battery system model, it will switch to grid and solar as
below.When the battery voltage reaches 56V it would disconnect your inverter from mains and
entire load runs on battery & Solar. In evening, when solar power is low or battery voltage is below 46V, it will
switch to mains.This solar mppt hybrid inverter is capable to load 3KW of surge load and able to run 2000W
load continuously.Minimum VOC of the panel supported is 40V and Maximim VOC supported is
110V.Maximum solar panels supported is 3200W.The ampere rating of mppt is 40A.
Solar Hybrid Inverter 4KVA-48V-100VOC

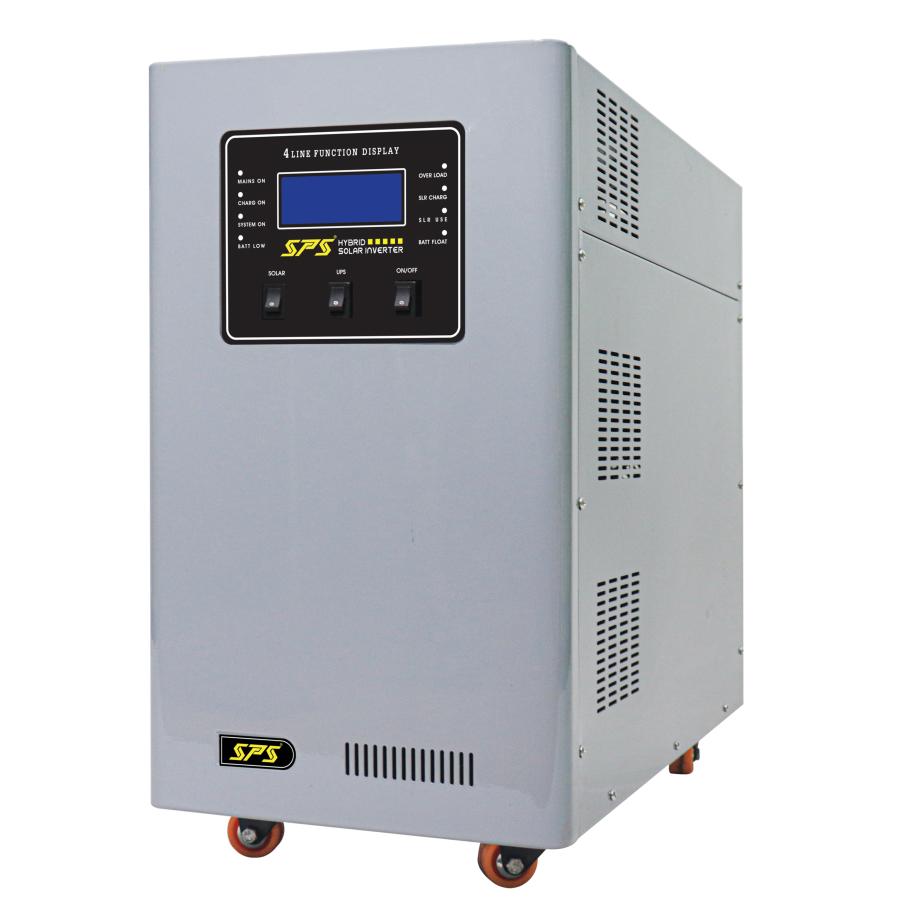

Working of SPS Mppt Solar Hybrid Inverter 4KVA-24V-110VOC HS4000A.mppt inverters
Since this inverter is a 24V battery system model, it will switch to grid and solar as
below.When the battery voltage reaches 28V it would disconnect your inverter from mains and
entire load runs on battery & Solar. In evening, when solar power is low or battery voltage is below 23V, it will
switch to mains.This solar mppt hybrid inverter is capable to load 3KW of surge load and able to run 1000W
load continuously.Minimum VOC of the panel supported is 40V and Maximim VOC supported is
110V.Maximum solar panels supported is 2400W.The ampere rating of mppt is 40A.
Solar Hybrid Inverter 4KVA-24V-100VOC
Working of SPS Mppt Solar Hybrid Inverter 5KVA-48V-150VOC HS5000A.mppt inverters
Since this inverter is a 48V battery system model, it will switch to grid and solar as below.When
the battery voltage reaches 56V it would disconnect your inverter from mains and entire load
runs on battery & Solar. In evening, when solar power is low or battery voltage is below 46V, it will
switch to mains.This solar mppt hybrid inverter is capable to load 3.75KW of surge load and able to run
2000W load continuously.Minimum VOC of the panel supported is 40V and Maximim VOC supported is
110V.Maximum solar panels supported is 3200W.The ampere rating of mppt is 40A.
Solar Hybrid Inverter 5KVA-48V-100VOC
SPS Mppt Solar Hybrid Inverters.mppt inverters
These are Mppt based solar hybrid inverters and are equipped with inBuilt MPPT Charge Controller.
They have the Priority Solar Charging mode or otherwise
called hybrid mode. In Hybrid mode, they will enable the inverter to charge the battery by
sensing the solar light at day time and charge from grid when the solar light is absent. So grid
energy and solar energy will be utilised based on the light availability.Hence the name hybrid.If this Solar
Mode/Hybrid Mode switch is OFF ,the Inverter will be in Hybrid mode.In this mode, inverter will charge from both
solar and grid.If Solar present, it will charge the battery from Solar. If solar light is not
detected,then it will charge from Grid/mains.If Solar Mode/Hybrid Mode switch is ON ,
then the Inverter will be in Solar mode.Inverter will charge the battery from Solar Only.
These inverters are compactibale with both Lithium and lead acid battery types.
These inverters available in both aluminium and copper based transformers.
Care should be taken while connecting the battery and Solar panels to this inverter.
Always connect the battery first, then connect the solar panel.
